Re: SPARK RESCUE MADE SIMPLE

#61



Post by Hubdar » 10 Jun 2019, 8:06 pm

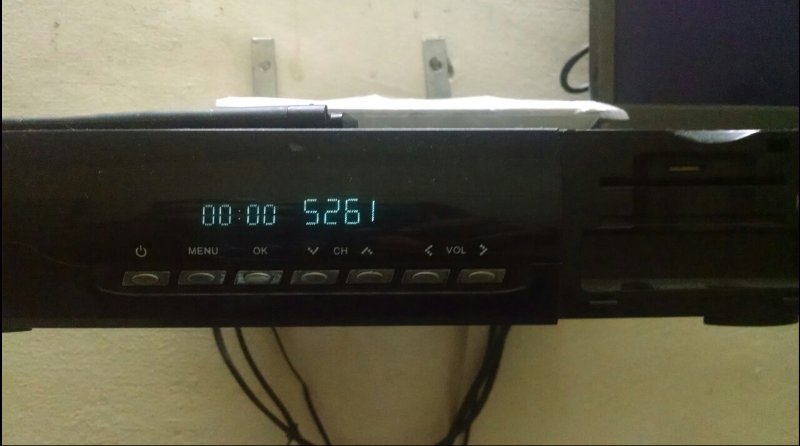

THANKS DEAR ATHAR KA AGER ATHAR EID PER CHUTI NA ATA TO MERA 2020+ HAMESHA K LYE BOOT PEHAN LETA AAJ DEAR ATHAR NE MUJHE RESCUE KARKE DIYA AB RECIVER 53 SECOND ME ON DISPLY HE THANK U 100 MUCH ADA ATHAR :thank: :thank: :thank: :thank: :thank: :friend: :fart: :fart: :surprise: :surprise: :surprise: :LOL: :LOL: :LOL:
GOLDEN MULTIMEDIA FORUM EK DOOSRY KI MADAD KE LEYE BANAYA GAYA HAI.
PLZ EK DOSRY KI HELP KIA KRAIN IS SE HOSLA BARHTA HAI (THANKS)

sadisa
Registered Member
Registered Member
Posts: 65
Joined: 12 May 2019, 12:04 am
Has thanked: 1 time
Been thanked: 4 times
Contact:

Re: SPARK RESCUE MADE SIMPLE

#62



Post by sadisa » 10 Jun 2019, 9:20 pm

dear athart, amiko alien 2 spatk 7162 for 1.2.86?

asghar101
Junior Member
Junior Member
Posts: 8
Joined: 20 Feb 2018, 5:51 pm
Contact:

dear athart &TAILB BHAI SPARK ka masal

#63



Post by asghar101 » 16 Jun 2019, 12:56 pm

all SPARK



Board: STx7105-PDK [32-bit mode]


U-Boot 1.3.1 (Jun 19 2012 - 17:10:44) - stm23_0051 - YW_1.1.005 overclock

DRAM: 256 MiB
Panel: VFD
NAND: Bad block table found at page 262080, version 0x01
Bad block table found at page 262016, version 0x01
512 MiB
SPI: info: found S25FL016K (2MiB) device (page=256,erase=65536)
warning: SPI device may be write-protected (status=0x9c)
In: serial
Out: serial
Err: serial
Ident ic exist
Ident ic get stb id
IdentID : 0c 00 05 00 00 15 d0
Hit ESC to stop autoboot: 3
PDK7105> set load _addr 0*80000000
PDK7105> save
Saving Environment to SPI Serial Flash...
..
PDK7105>

Board: STx7105-PDK [32-bit mode]


U-Boot 1.3.1 (Jun 19 2012 - 17:10:44) - stm23_0051 - YW_1.1.005 overclock

DRAM: 256 MiB
Panel: VFD
NAND: Bad block table found at page 262080, version 0x01
Bad block table found at page 262016, version 0x01
512 MiB
SPI: info: found S25FL016K (2MiB) device (page=256,erase=65536)
warning: SPI device may be write-protected (status=0x9c)
In: serial
Out: serial
Err: serial
Ident ic exist
Ident ic get stb id
IdentID : 0c 00 05 00 00 15 d0
Hit ESC to stop autoboot: 3
Force command mode:Select boot (current boot system : spark):
1. spark(up key)
2. enigma2(down key)
3. RS232 Upgrade u-boot(left key)
4. Force into factory mode(right key)
Input Select:
Force Factory mode
(Re)start USB...
USB: scanning bus for devices... 1 USB Device(s) found
scanning bus for storage devices... 0 Storage Device(s) found
** Can't read from device 0 **

** Unable to use usb 0:1 for fatload **

Warning: MAC addresses don't match:
HW MAC address: FF:FF:FF:FF:FF:FF
"ethaddr" value: 00:80:E1:12:06:38
Using MAC Address 00:80:E1:12:06:38
stmac_phy_get_addr(): id1 = 0xffff, id2 = 0xffff
found phy at addres = 2
stmac_phy_get_addr(): id1 = 0x7, id2 = 0xc0f1
STM-GMAC: PHY auto-negotiate timed out
STM-GMAC: *Warning* no link detected
TFTP from server 192.168.40.19; our IP address is 192.168.40.63
Filename 'mImage'.
Load address: 0x8c000000
Loading: T T T T T T T T T T T T T T T T T T T T
Retry count exceeded; starting again
TFTP from server 192.168.40.19; our IP address is 192.168.40.63
Filename 'mImage'.
Load address: 0x8c000000
Loading: T T T T T T T T T T T T T T T T T T T T
Retry count exceeded; starting again
TFTP from server 192.168.40.19; our IP address is 192.168.40.63
Filename 'mImage'.
Load address: 0x8c000000
Loading: T T T T T T T T T T T T T T T T T T T T
Retry count exceeded; starting again
TFTP from server 192.168.40.19; our IP address is 192.168.40.63
Filename 'mImage'.
Load address: 0x8c000000
Loading: T T T T T T T T T T T T T T T T T T T T
Retry count exceeded; starting again
TFTP from server 192.168.40.19; our IP address is 192.168.40.63
Filename 'mImage'.
Load address: 0x8c000000
Loading: T T T T T T T T T T T T T T T T T T T

Board: STx7105-PDK [32-bit mode]


U-Boot 1.3.1 (Jun 19 2012 - 17:10:44) - stm23_0051 - YW_1.1.005 overclock

DRAM: 256 MiB
Panel: VFD
NAND: Bad block table found at page 262080, version 0x01
Bad block table found at page 262016, version 0x01
512 MiB
SPI: info: found S25FL016K (2MiB) device (page=256,erase=65536)
warning: SPI device may be write-protected (status=0x9c)
In: serial
Out: serial
Err: serial
Ident ic exist
Ident ic get stb id
IdentID : 0c 00 05 00 00 15 d0
Hit ESC to stop autoboot: 3
Force command mode:Select boot (current boot system : spark):
1. spark(up key)
2. enigma2(down key)
3. RS232 Upgrade u-boot(left key)
4. Force into factory mode(right key)
Input Select:
Force rs232 upgrade u-boot, need 1048576 Bytes(1024kB)
## Ready for binary (ymodem) download to 0x80000000 at 115200 bps...
CCC

shahid sana
Junior Member
Junior Member
Posts: 29
Joined: 25 Nov 2015, 12:46 pm
Contact:

Re: SPARK RESCUE MADE SIMPLE

#64



Post by shahid sana » 05 Sep 2019, 11:18 pm

great work end great men

first khan
Registered Member
Registered Member
Posts: 236
Joined: 21 Sep 2016, 1:49 pm
Has thanked: 18 times
Been thanked: 17 times
Contact:

Re: SPARK RESCUE MADE SIMPLE

#65



Post by first khan » 16 Sep 2019, 7:29 am

Athart wrote:
20 Jul 2018, 5:26 pm
Dear Golden Members
Here is the simplest / easiest method to rescue spark when there is Boot / Plugin or FTP problem.
.

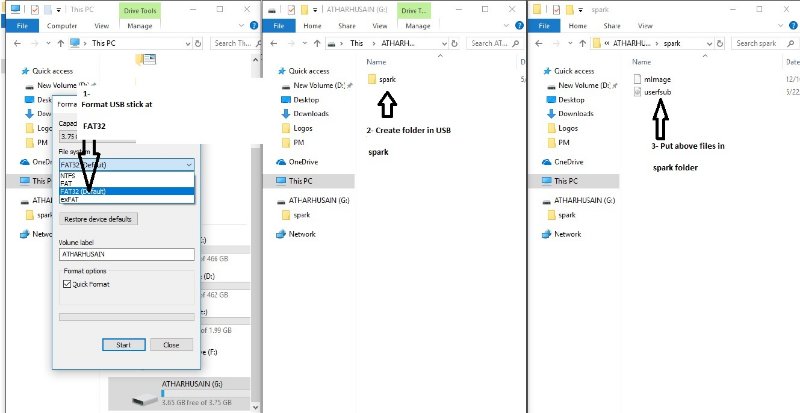

1- Pehle USB ko FAT32 pe format kro
2- Phir USB me spark folder bnao
3- Ab spark folder me dono rescue files rakho
.
.

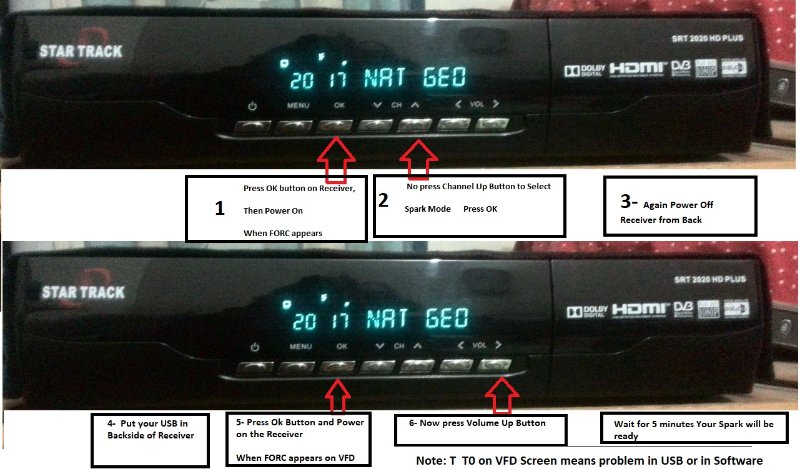

Ab Receiver ko spark mode me le aao
.
4- OK button ko daba ke, Receiver ko pichle Button se On kro

5- Jab Receiver pe VFD likha aae OK button se angotha hatta ke phir Channel Up button se spark select kr ke OK ko dabao.

Ab aakhri merhala

6- Ab Receiver ko phir pichle button se band ko, aur USB ko Receiver ke Backside pe lagao

7- Ab OK Button ko daba ke Receiver ko On kro jab VFD nazr aae, Volume Up button ko Dabao.
.
.
Ab receiver pe Ye nazar aae ga.
.
.

Here is the link to download rescue image for Spark 7162 SRT
.
https://mega.nz/#!COQk2IgZ!SiFNduG0i6gU ... ETQfJQ8nBQ
......
Rest is best but, the best never rest.
