Startrack 2020 HD Plus Problem On Boot Stuck and Solution

[Dr.Timor]

Download Link : https://www.4shared.com/get/1Vh-VJEYba/1369377954.html

[-=Khalid Nawaz=-]

great man great service a real spark expert I like ur working
Bro I want to u suggest that there should be a link for enigma users where basic things regarding enigma should be posted for begginers as they feeling difficulty in using enigma..

[talibb]

dosr method rescue image computer ethernet with settings ip192.168.40.19 or 192.168.50.28 in my network local area connection=propertis=internet protocol TCP/IP and select following ip address apply and save
and tool of ugrade
Upgrade rescure spark by tftp:
Upgrade Step: 1.copy [mImage] and [userfsub.img] to any folder of your PC, for example [C:/spark]
2.select folder in TFTP tools:
3.Keep Pressing [OK] Button in Front Panel, then power on STB.
4.After 5 seconds you will see [Forc] in LED, release [OK] button and press [R i g h t] Button.
5.If everything OK, You will see [T LD] shining in LED
and you will see some debug information in TFTP Server,
like “Mon Oct 25 14:02:36 2010: Sending 'mImage' file to 192.168.40.19 in binary mode Mon Oct 25 14:02:39 2010: Successful.
Mon Oct 25 14:02:50 2010: Sending 'userfsub.img' file to 192.168.40.19 in binary mode Mon Oct 25 14:03:33 2010: Successful.”
6.if upgrade success, You will see [SUCC] and STB reboot automatically If upgrade not finishes in 5 minutes,
then there must be something wrong, please check your configuration and re-try.
computer ethernet loader download
http://www.4shared.com/rar/Fg6DZolFba/r ... tpd32.html
softwear rescue 7162 chip startrack2020 hd plus
http://www.4shared.com/zip/2HfmRQDS/spa ... oblem.html
bhai aiup linux usb say bhee kar sakitay hoo
mostly 3.0 usb latest
these models are also ok
1=kindstone dtse109
2=dt 109
usb must be linux supported
aiup ntfs say usb formate karoo ise tool say
http://www.4shared.com/rar/4m-cV2cEba/H ... rmate.html

[talibb]

hyperterminal computer windows per ye try karoo
rs232 port say
computer windows min hyper terminal bnaio
Attention DO It on your Own Risk;;;;;;;
all programms=accessries=communication=hyperterminal=new connection
Bit per second = 115200
Data bits = 8
Parity = None
Stops bits = 1
Flow controll = None
ABHI 232 port computer to recever lagaio
recever off karoo
terminal start karoo
[Manu] recevier ko press kar kay rakhoo =power on karoo ab computer per ye aie ga
ab ye command lagaio
PDK7105>set load _addr 0*80000000
PDK7105>save
phir linux usb or nokia orignal memory card say rescue karoo

[shoo shoo]

hyperterminal computer windows per ye try karoo
rs232 port say
computer windows min hyper terminal bnaio
Attention DO It on your Own Risk;;;;;;;
all programms=accessries=communication=hyperterminal=new connection
Bit per second = 115200
Data bits = 8
Parity = None
Stops bits = 1
Flow controll = None
ABHI 232 port computer to recever lagaio
recever off karoo
terminal start karoo
[Manu] recevier ko press kar kay rakhoo =power on karoo ab computer per ye aie ga
ab ye command lagaio
PDK7105>set load _addr 0*80000000
PDK7105>save
phir linux usb or nokia orignal memory card say rescue karoo

yr force menu ni aata ok press krne se reciever led pe timer show ho raha hai

[jahan25]

dosr method rescue image computer ethernet with settings ip192.168.40.19 or 192.168.50.28 in my network local area connection=propertis=internet protocol TCP/IP and select following ip address apply and save
and tool of ugrade
Upgrade rescure spark by tftp:
Upgrade Step: 1.copy [mImage] and [userfsub.img] to any folder of your PC, for example [C:/spark]
2.select folder in TFTP tools:
3.Keep Pressing [OK] Button in Front Panel, then power on STB.
4.After 5 seconds you will see [Forc] in LED, release [OK] button and press

Button.
5.If everything OK, You will see [T LD] shining in LED
and you will see some debug information in TFTP Server,
like “Mon Oct 25 14:02:36 2010: Sending 'mImage' file to 192.168.40.19 in binary mode Mon Oct 25 14:02:39 2010: Successful.
Mon Oct 25 14:02:50 2010: Sending 'userfsub.img' file to 192.168.40.19 in binary mode Mon Oct 25 14:03:33 2010: Successful.”
6.if upgrade success, You will see [SUCC] and STB reboot automatically If upgrade not finishes in 5 minutes,
then there must be something wrong, please check your configuration and re-try.
computer ethernet loader download
http://www.4shared.com/rar/Fg6DZolFba/r ... tpd32.html" onclick="window.open(this.href);return false;
softwear rescue 7162 chip startrack2020 hd plus
http://www.4shared.com/zip/2HfmRQDS/spa ... oblem.html" onclick="window.open(this.href);return false;?
bhai aiup linux usb say bhee kar sakitay hoo
mostly 3.0 usb latest
these models are also ok
1=kindstone dtse109
2=dt 109
usb must be linux supported
aiup ntfs say usb formate karoo ise tool say
http://www.4shared.com/rar/4m-cV2cEba/H ... rmate.html" onclick="window.open(this.href);return false;?

Bhai ap wala pe tareka kaam nai ker raha hai or yah ek file ka keh raha hai ( ulmage ) msg show ker raha hai or yah bar bar yah msg write ker raha hai bhai phr main ab kiya karo...

[talibb]

hyperterminal computer windows per ye try karoo
rs232 port say
computer windows min hyper terminal bnaio
Attention DO It on your Own Risk;;;;;;;
all programms=accessries=communication=hyperterminal=new connection
Bit per second = 115200
Data bits = 8
Parity = None
Stops bits = 1
Flow controll = None
ABHI 232 port computer to recever lagaio
recever off karoo
terminal start karoo
[Manu] recevier ko press kar kay rakhoo =power on karoo ab computer per ye aie ga
ab ye command lagaio
PDK7105>set load _addr 0*80000000
PDK7105>save
phir linux usb or nokia orignal memory card say rescue karoo

aiup ye karoo
hyperterminal computer windows per ye try karoo
rs232 port say
computer windows min hyper terminal bnaio
Attention DO It on your Own Risk;;;;;;;
all programms=accessries=communication=hyperterminal=new connection
Bit per second = 115200
Data bits = 8
Parity = None
Stops bits = 1
Flow controll = None
ABHI 232 port computer to recever lagaio
recever off karoo
terminal start karoo
[Manu] recevier ko press kar kay rakhoo =power on karoo ab computer per ye aie ga
ab ye command lagaio
PDK7105>set load _addr 0*80000000
PDK7105>save
phir linux usb or nokia orignal memory card say rescue karoo

[jahan25]

bhai 192.168.40.19 or 192.168.50.28 yah dono ip use kerni hai seref ek?Bhai ek or baat eh dafa start huva setup muj say cancel hoga 192.168.50.28 wali ip per ab bohat try kiya per yah dubara start nai huva.
Bhai rahi dusra wala tareka jo ap nay abi bataya hai woh reski or mushkil be hai...
ip walay say umeed hai us say sahi ho jay ga per kaisi na kaisi jaga per main mistake ker raha hu...

[talibb]

192.168.40.19

ye only one ip use karoo
192.168.40.19
agar phir bhee naheen ho to
upgrade recever RS232 port khareed karo
aur btaya huwa tareeqa computer say command lagaio

[jahan25]

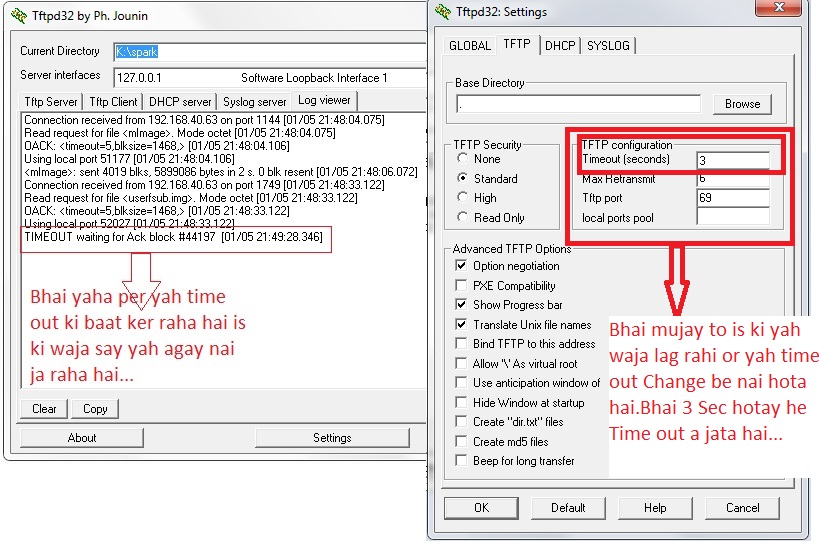

Talibb bhai ab yah agay ja raha hai per agay ja ker Ruk raha hai is ki waja jo mujay lag rahi hai yahi hai ya kohi or talibb bhai ap in pic ko dekhay...
