Jtag Solo2 original

[Muhammad Qaiser]

Jtag Solo2 original

Steps

Hardware/software needed..
1. Vu+ Solo2 receiver for the connection to the P701 connector.
2. CY7C68013A development board.
3. Broadband Studio 3 software with the the bcm97346 cpu drivers.
4. CFE bin file.
5. And (of course) a windows computer etc.

First install the,
1. Broadband Studio 3 software.

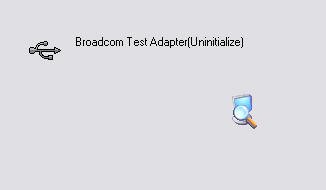

2. Then connect the development board with the usb cable, turn it on, driver install will follow.

Howto connect step 4.

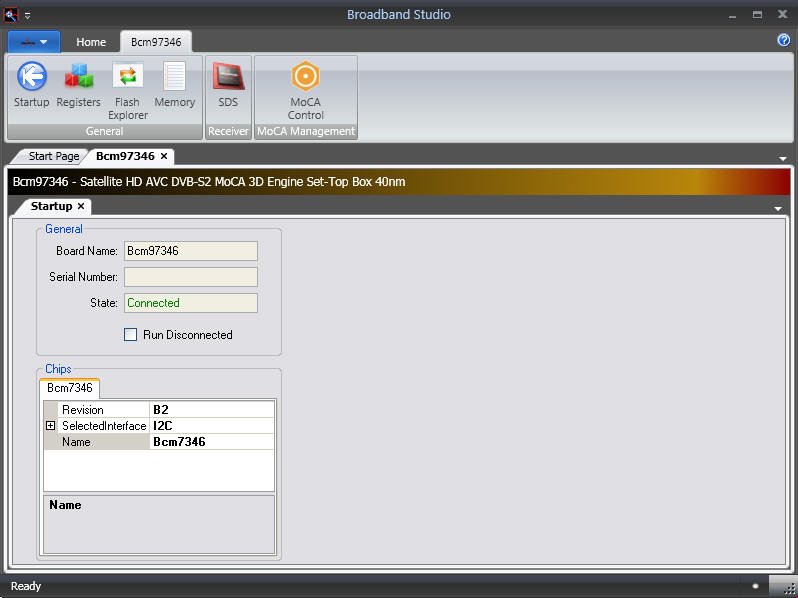

4A. Start up the Broadband Studio 3 software,
4B. Choose the Bcm97346,
4C. Turn On the receiver,
4D. Switch on the development board,
and when all is correct, you should see the connection to the Bcm97346 cpu but when not, switch Off the motherboard, and turn it On again.
After this you must see a connection, if not, then you have not a good working motherboard or development board or some other cause.

When finished, disconnect the development board and upload a image file on the regular way by Usb.

Download...
The Broadband Studio 3 software with the the bcm97346 cpu drivers and pdf instructions can be downloaded from mega.nz, file is 84.3Mb.

An Cfe bin file can be downloaded from beneath, it's for the original, but can also used with clones because I've tested it on a solo2 clone with a new nand flash chip.

File:

Org-Solo2_CFE.zip

(143.22 KiB)
