How to connect two boxs with a disque switch

[adnan001]

how to connect two boxs with a disque switch

[saad]

A/B Switch sa karoo

[adnan001]

detail share karien

[bilalpk]

Use 21 Khz Switch

[adnan001]

Dear Brother

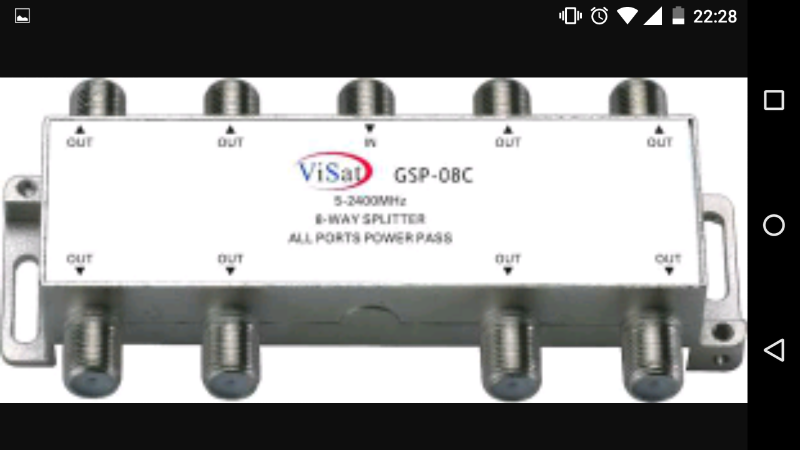

I have Disque Swith 1.0 4 in 1 means LNBs and 1 out put,Any body tell me that can i use 4 way spliter Power pass connected with Disque switch,power pass have 4 outputs and 1 input,basecally i want 2 Receivers

[Athart]

Your can even use 8 receivers with single LNB.

[Athart]

[chazer]

Dear Brother
I have Disque Swith 1.0 4 in 1 means LNBs and 1 out put,Any body tell me that can i use 4 way spliter Power pass connected with Disque switch,power pass have 4 outputs and 1 input,basecally i want 2 Receivers

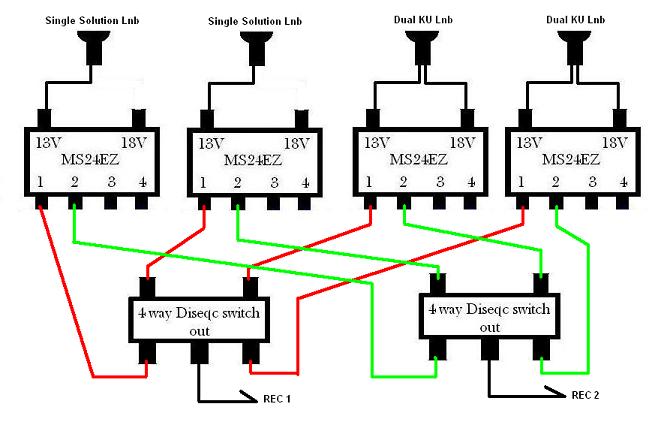

You can't split output of Diseqc switch with any splitter , use separate Diseqc switch for each receiver. See the Pic.
