Hi
I am using same finder and receiver hyper 2000
I have issue with 11090 h 30000 and 11510 h 30000
May dual output lnb use kar raha hon
Full 95e 100% on 4 feet received hota hai
Meray pass 2 starsat receiver hain akk may company software hai jis may 22khz ka on off ka option hai or dosray may koi or software hai jiss may auto ka bhi option hai
Auto walay pay all frequency ok received hoti hain jab k on walay saari received nahi hoti
Itni tafseel batanay ka maqsad ye hai k app 22khz ko auto kar k dekhoo
Regards
Adeel
Signal accessing issue @95*E
- Umair Malik
- Moderator
- Posts: 6974
- Joined: 18 Jun 2013, 3:54 am
- Location: Attock City/Taxila Cantt
- Has thanked: 247 times
- Been thanked: 1657 times
Re: Signal accessing issue @95*E
addee wrote:Hi
I am using same finder and receiver hyper 2000
I have issue with 11090 h 30000 and 11510 h 30000
May dual output lnb use kar raha hon
Full 95e 100% on 4 feet received hota hai
Meray pass 2 starsat receiver hain akk may company software hai jis may 22khz ka on off ka option hai or dosray may koi or software hai jiss may auto ka bhi option hai
Auto walay pay all frequency ok received hoti hain jab k on walay saari received nahi hoti
Itni tafseel batanay ka maqsad ye hai k app 22khz ko auto kar k dekhoo
Regards
Adeel
Yes this looks true
Starsat 2000 Extreme HD
Starsat 2000 Hyper HD
Sony KD49X8500B
Shabir 8-Feet Motorized (With Auto Positioner)
Coverage:-115E To 3.1E
Fixed=105E(C),95E+93.5E(KU),91.5E(C),38.5E(C+KU),26E(KU),13E(KU),9E(KU)
Starsat 2000 Hyper HD
Sony KD49X8500B
Shabir 8-Feet Motorized (With Auto Positioner)
Coverage:-115E To 3.1E
Fixed=105E(C),95E+93.5E(KU),91.5E(C),38.5E(C+KU),26E(KU),13E(KU),9E(KU)
- Masood
- Vip
- Posts: 3461
- Joined: 17 Jan 2015, 4:19 pm
- Location: Lahore
- Has thanked: 799 times
- Been thanked: 1070 times
Re: Signal accessing issue @95*E
satellite finder peh koee aisa switch naheen hota .....signals appears on roof but disappears in room-=UMAIR=- wrote:Yes this looks true
I'm sure ,I need to change the coaxial cable once again .......the root of cable from roof to room is very complicated
DM 900 UltraHD
800HDse SIM2.10
OpenBox AS4K CI Pro
800HDse SIM2.10
OpenBox AS4K CI Pro
Re: Signal accessing issue @95*E
Cable change karnay say i think problem solve nahi hogaMasood wrote:satellite finder peh koee aisa switch naheen hota .....signals appears on roof but disappears in room-=UMAIR=- wrote:Yes this looks true
I'm sure ,I need to change the coaxial cable once again .......the root of cable from roof to room is very complicated
App receiver direct oper hee laga k dekh loo warna sab zaya jayay ga
Umair bhai nay bhi cofirm kar diya hai ju may keh raha tha baki app ki marzi
Re: Signal accessing issue @95*E

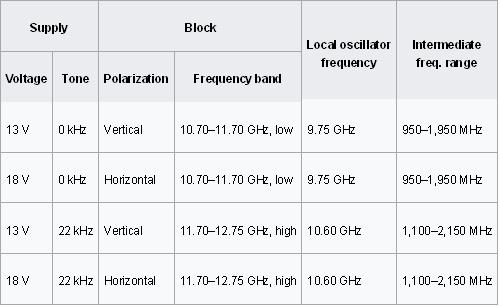

The reason behind this is Local oscillator freq witch changes from 9.75GHz to 10.60GHz on detection of 22kHz in Universal type KU LNB and this function perform by the receiver autometically.addee wrote: Auto walay pay all frequency ok received hoti hain jab k on walay saari received nahi hoti
Itni tafseel batanay ka maqsad ye hai k app 22khz ko auto kar k dekhoo
If other Tps of above 12GHz faces the same problem then it could be due to lac of 22kHz signal approaching LNB but as Mr Masood said only 12170 is effected doesn't make sense.
- Masood
- Vip
- Posts: 3461
- Joined: 17 Jan 2015, 4:19 pm
- Location: Lahore
- Has thanked: 799 times
- Been thanked: 1070 times
Re: Signal accessing issue @95*E
I agreed to your logics ..what do you recommend to solve my issue? is there any switch works to boost the signals ?chazer wrote:The reason behind this is Local oscillator freq witch changes from 9.75GHz to 10.60GHz on detection of 22kHz in Universal type KU LNB and this function perform by the receiver autometically.If other Tps of above 12GHz faces the same problem then it could be due to lac of 22kHz signal approaching LNB but as Mr Masood said only 12170 is effected doesn't make sense.
DM 900 UltraHD
800HDse SIM2.10
OpenBox AS4K CI Pro
800HDse SIM2.10
OpenBox AS4K CI Pro
- Umair Malik
- Moderator
- Posts: 6974
- Joined: 18 Jun 2013, 3:54 am
- Location: Attock City/Taxila Cantt
- Has thanked: 247 times
- Been thanked: 1657 times
Re: Signal accessing issue @95*E

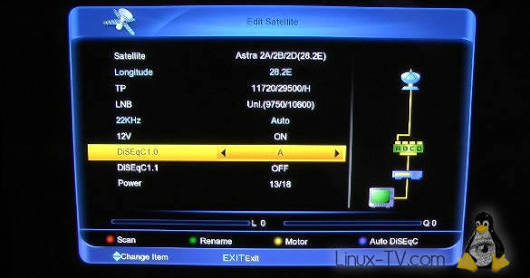

Try These Settings in your receiver's installation menu
Keep 22khz auto
Lnb universal
Power 13/18
Keep 22khz auto
Lnb universal
Power 13/18
Starsat 2000 Extreme HD
Starsat 2000 Hyper HD
Sony KD49X8500B
Shabir 8-Feet Motorized (With Auto Positioner)
Coverage:-115E To 3.1E
Fixed=105E(C),95E+93.5E(KU),91.5E(C),38.5E(C+KU),26E(KU),13E(KU),9E(KU)
Starsat 2000 Hyper HD
Sony KD49X8500B
Shabir 8-Feet Motorized (With Auto Positioner)
Coverage:-115E To 3.1E
Fixed=105E(C),95E+93.5E(KU),91.5E(C),38.5E(C+KU),26E(KU),13E(KU),9E(KU)
- Masood
- Vip
- Posts: 3461
- Joined: 17 Jan 2015, 4:19 pm
- Location: Lahore
- Has thanked: 799 times
- Been thanked: 1070 times
Re: Signal accessing issue @95*E
sat finder ko be zehn mein rukhain and what will be its setting-=UMAIR=- wrote:Try These Settings in your receiver's installation menu

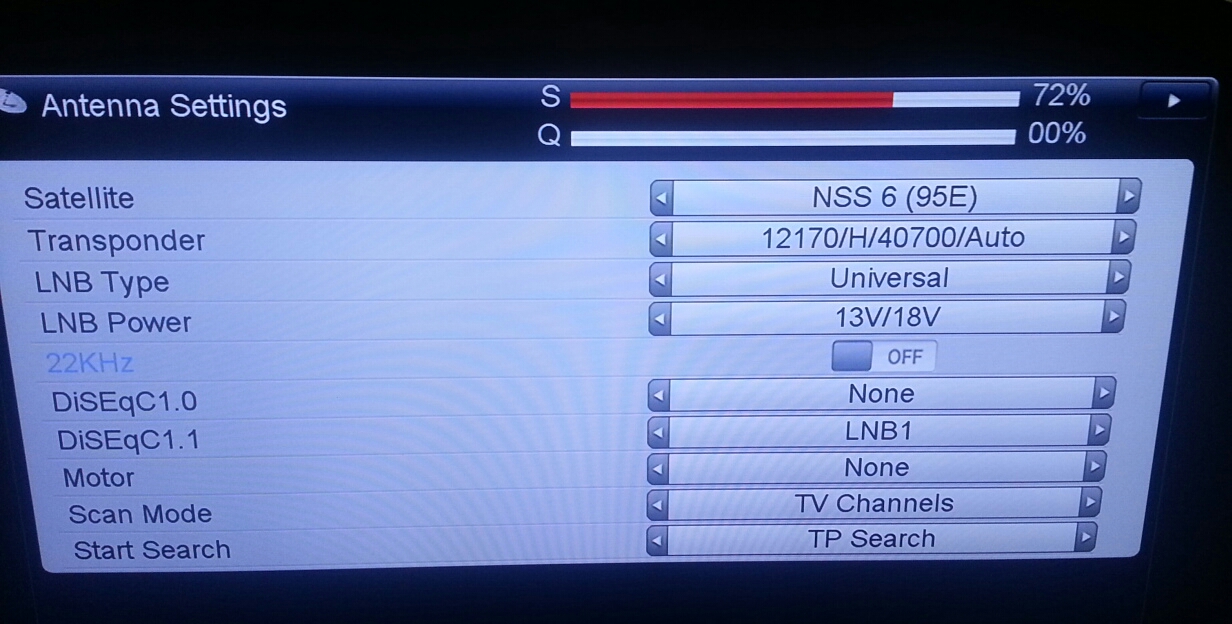

rest all TP's signals are accessing except 12170.....NO issue of polarity as well.....few H polarity TP's signals are fine
today I will cross check b4 cable routing......may be the problem comes during cable routing
DM 900 UltraHD
800HDse SIM2.10
OpenBox AS4K CI Pro
800HDse SIM2.10
OpenBox AS4K CI Pro
- Dr.Timor
- Moderator
- Posts: 8249
- Joined: 27 Mar 2015, 1:46 pm
- Location: Mazar-e Sharif Afghanistan
- Has thanked: 256 times
- Been thanked: 490 times
Re: Signal accessing issue @95*E
butt saab Mera bhe NSS6 signal ka issue tha pher mai Cox cable change kar deya problem teek hogaya agar Lahore meh russia ya iran made ka wire mil jaye to bhut acha hoga
Openbox AS4K+
China 62inch Smart UHD TV Full 4K
5ft Motorized Dish Recovering from 1*West up to 108*East
iPhone 12 Pro Max
Samsung Galaxy A30
WhatsApp +93795023522
China 62inch Smart UHD TV Full 4K
5ft Motorized Dish Recovering from 1*West up to 108*East
iPhone 12 Pro Max
Samsung Galaxy A30
WhatsApp +93795023522
- Masood
- Vip
- Posts: 3461
- Joined: 17 Jan 2015, 4:19 pm
- Location: Lahore
- Has thanked: 799 times
- Been thanked: 1070 times
Re: Signal accessing issue @95*E
here in local market only china copper coaxial cable is available and that is already checked earlier .Dr.Timor wrote:butt saab Mera bhe NSS6 signal ka issue tha pher mai Cox cable change kar deya problem teek hogaya agar Lahore meh russia ya iran made ka wire mil jaye to bhut acha hoga
aap nay kub aana hay ?Torkhum border completely khul chuka hay .....meray liay Russian taar ka aik roll lay aana
DM 900 UltraHD
800HDse SIM2.10
OpenBox AS4K CI Pro
800HDse SIM2.10
OpenBox AS4K CI Pro
