Startrack 2020 HD Plus Problem On Boot Stuck and Solution

User avatar
Dr.Timor
Moderator
Moderator
Posts: 8298
Joined: 27 Mar 2015, 1:46 pm
Location: Mazar-e Sharif Afghanistan
Has thanked: 215 times
Been thanked: 412 times
Contact:

Re: Startrack 2020 HD Plus Problem On Boot Stuck and Solutio

#21



Post by Dr.Timor »

Download Hyperterminal for Windows 7, 8, 10, Vista, and XP : http://www.hilgraeve.com/support/htpe7.exe" onclick="window.open(this.href);return false;

skystar
Registered Member
Registered Member
Posts: 62
Joined: 25 Dec 2015, 2:11 pm
Contact:

Re: Startrack 2020 HD Plus Problem On Boot Stuck and Solutio

#22



Post by skystar »

USB SE BHI NAHI HO RAHA U HI LEKA ARAHA HAI 25 MIN HO GAYE HAIN

first khan
Registered Member
Registered Member
Posts: 244
Joined: 21 Sep 2016, 1:49 pm
Has thanked: 20 times
Been thanked: 19 times
Contact:

Re: Startrack 2020 HD Plus Problem On Boot Stuck and Solutio

#23



Post by first khan »

talibb wrote::salam:
dosr method rescue image computer ethernet with settings ip192.168.40.19 or 192.168.50.28 in my network local area connection=propertis=internet protocol TCP/IP and select following ip address apply and save
and tool of ugrade
Upgrade rescure spark by tftp:
Upgrade Step: 1.copy [mImage] and [userfsub.img] to any folder of your PC, for example [C:/spark]
2.select folder in TFTP tools:
3.Keep Pressing [OK] Button in Front Panel, then power on STB.
4.After 5 seconds you will see [Forc] in LED, release [OK] button and press
Button.
5.If everything OK, You will see [T LD] shining in LED
and you will see some debug information in TFTP Server,
like “Mon Oct 25 14:02:36 2010: Sending 'mImage' file to 192.168.40.19 in binary mode Mon Oct 25 14:02:39 2010: Successful.
Mon Oct 25 14:02:50 2010: Sending 'userfsub.img' file to 192.168.40.19 in binary mode Mon Oct 25 14:03:33 2010: Successful.”
6.if upgrade success, You will see [SUCC] and STB reboot automatically If upgrade not finishes in 5 minutes,
then there must be something wrong, please check your configuration and re-try.

computer ethernet loader download
http://www.4shared.com/rar/Fg6DZolFba/r ... tpd32.html" onclick="window.open(this.href);return false;
softwear rescue 7162 chip startrack2020 hd plus
http://www.4shared.com/zip/2HfmRQDS/spa ... oblem.html" onclick="window.open(this.href);return false;?
bhai aiup linux usb say bhee kar sakitay hoo
mostly 3.0 usb latest
these models are also ok
1=kindstone dtse109
2=dt 109
usb must be linux supported

aiup ntfs say usb formate karoo ise tool say
http://www.4shared.com/rar/4m-cV2cEba/H ... rmate.html" onclick="window.open(this.href);return false;?
dr.timor sir and talib sir are the real experts of spark
Rest is best but, the best never rest.

saeed1011
Junior Member
Junior Member
Posts: 2
Joined: 08 Sep 2015, 3:17 pm
Contact:

Startrack 2020 HD Plus Problem On Boot Stuck and Solution

#24



Post by saeed1011 »

Es ka kia hall hai


saeed1011
Junior Member
Junior Member
Posts: 2
Joined: 08 Sep 2015, 3:17 pm
Contact:

Startrack 2020 HD Plus Problem On Boot Stuck and Solution

#25



Post by saeed1011 »

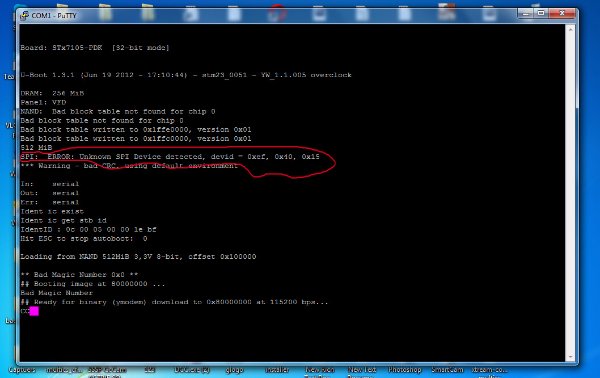

Board: STx7105-PDK [32-bit mode]


U-Boot 1.3.1-g72483220 (Jan 17 2012 - 17:10:49) - stm23_0051 - YW_1.1.003-9-g724 8322 overclock

DRAM: 256 MiB
NAND: Bad block table found at page 262080, version 0x01
Bad block table found at page 262016, version 0x01
512 MiB
SPI: info: found S25FL016K (2MiB) device (page=256,erase=65536)
warning: SPI device may be write-protected (status=0x9c)
In: serial
Out: serial
Err: serial
Ident ic exist
Ident ic get stb id
IdentID : 0c 00 07 00 00 0b 74
Hit ESC to stop autoboot: 3
Force command mode:Select boot (current boot system : spark):
1. spark(up key)
2. enigma2(down key)
3. RS232 Upgrade u-boot(left key)
4. Force into factory mode(right key)
Input Select:

User avatar
asif javaid
Registered Member
Registered Member
Posts: 146
Joined: 02 Feb 2015, 6:19 pm
Contact:

Startrack 2020 HD Plus Problem On Boot Stuck and Solution

#26



Post by asif javaid »

Great work by all experts . Keep it up..

beela
Registered Member
Registered Member
Posts: 66
Joined: 28 Jan 2015, 10:39 am
Contact:

Startrack 2020 HD Plus Problem On Boot Stuck and Solution

#27



Post by beela »

Very helpful post

Nabiullah88
Junior Member
Junior Member
Posts: 26
Joined: 30 Nov 2014, 2:25 pm
Contact:

Startrack 2020 HD Plus Problem On Boot Stuck and Solution

#28



Post by Nabiullah88 »

sir mera srt 2020 hd plus boot pe ruk jta ha mn ny recue image try kya ha pr hr dafa err ajata ha koi hal ha s ka????

talibb
Gold Contributor
Gold Contributor
Posts: 1020
Joined: 03 Jul 2013, 8:09 pm
Has thanked: 3 times
Been thanked: 82 times
Contact:

Startrack 2020 HD Plus Problem On Boot Stuck and Solution

#29



Post by talibb »

Nabiullah88 wrote:
06 Sep 2017, 3:01 pm
sir mera srt 2020 hd plus boot pe ruk jta ha mn ny recue image try kya ha pr hr dafa err ajata ha koi hal ha s ka????
do teen martaba sari post kay saray page read karoo>>???

Nabiullah88
Junior Member
Junior Member
Posts: 26
Joined: 30 Nov 2014, 2:25 pm
Contact:

Startrack 2020 HD Plus Problem On Boot Stuck and Solution

#30



Post by Nabiullah88 »

nhi ho rha ha sir kya krun koi hal nikal den s ka
